HSL9601-Bio-Rad伯乐硬边低位半裙边96孔板HSL9601

【简单介绍】

Bio-Rad伯乐硬边低位半裙边96孔板HSL9601,硬边低位半裙边96孔PCR反应板,清晰孔和边,25块/盒。Hard-Shell 96-Well PCR Plates, low-profile, semi-skirted,clear shell/clear well PCR plate.

【详细说明】

Bio-Rad伯乐硬边低位半裙边96孔板HSL9601

硬边低位半裙边96孔PCR反应板,清晰孔和边,25块/盒。Hard-Shell 96-Well PCR Plates, low-profile, semi-skirted,clear shell/clear well PCR plate.

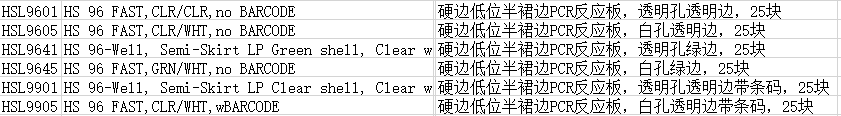

反应体积5-125ul(大200ul),低管高15.51mm,用于低反应体积和快速PCR,适用于Applied Biosystems 7500 fast和ViiA 7 fast仪器,HSL9901和HSL9905带有条形码。

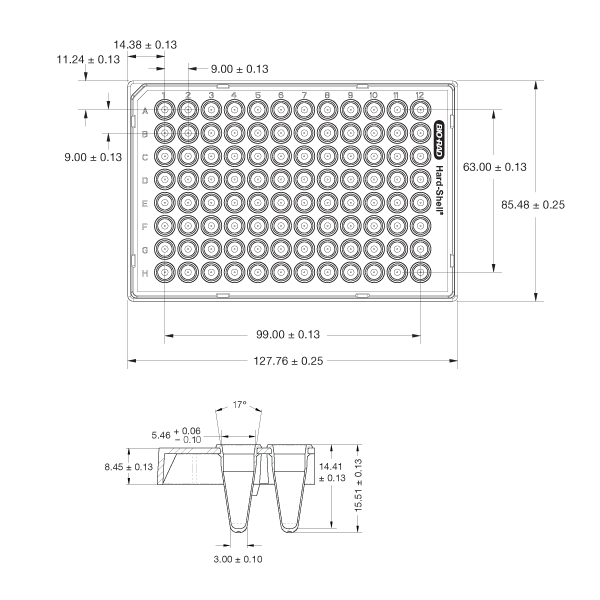

Microplate Dimensions Hard-Shell® Low-Profile 96-Well Semi-Skirted PCR Plates (HSL-9xxx)
Length at base plane 127.76 mm
Width at base plane 85.48 mm
Height overall 15.51 mm
Well depth 14.41 mm
Well diameter at opening 5.46 mm
Well diameter at bottom of conical section 3.00 mm
Well volume 200 µl
Well spacing 9.00 mm
Well angle 17.0 °
Well offset
Left edge to well A1 14.38 mm
Top edge to well A1 11.24 mm
Center of A1 to center of A12 99.00 mm
Center of A1 to center of H1 63.00 mm
